‍‍HC
输出范围:500W~1000W（12V~56V）。输入电压:AC 100V~240V。AC INLET（引线）:C14（接地CLASSI）。能效:V（5）。OV（过电压）/OC（过电流）/SC（短路电流）三重保护。安全认证:CE等。REACH、ROHS遵守.EMF通过电场测试（阻断有害电磁波）、适用产品:产业用机器等

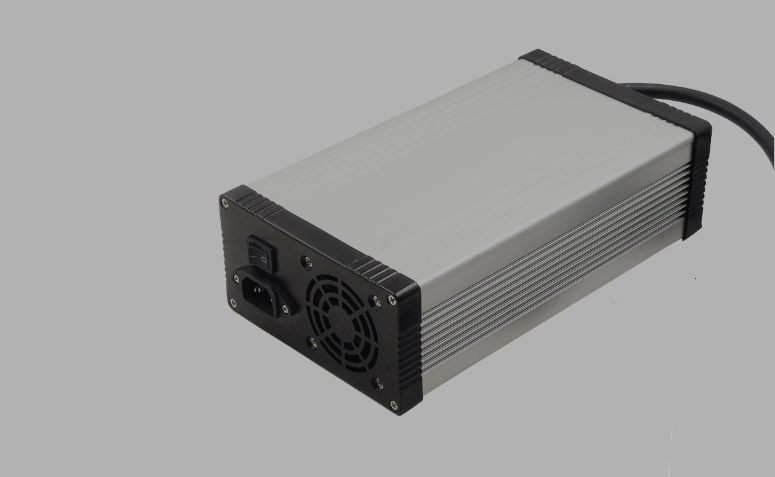

Max.1000W 大容量简约设计适配器，尺寸:246（长）x135（宽）x70（厚）‍‍

1,000W

High capacity
1,000W
12V15V16V18V19V
20V24V30V48V54V
56V
CLASS Ⅰ C14
900W

High capacity
900W
12V15V16V18V19V
20V24V30V48V54V
56V
CLASS Ⅰ C14
800W

High capacity
800W
12V15V16V18V19V
20V24V30V48V54V
56V
CLASS Ⅰ C14
700W

High capacity
700W
12V15V16V18V19V
20V24V30V48V54V
56V
CLASS Ⅰ C14
600W

High capacity
600W
12V15V16V18V19V
20V24V30V48V54V
56V
CLASS Ⅰ C14
500W

High capacity
500W
12V15V16V18V19V
20V24V30V48V54V
56V
CLASS Ⅰ C14

DC WIRE STANDARD: 1.5 M

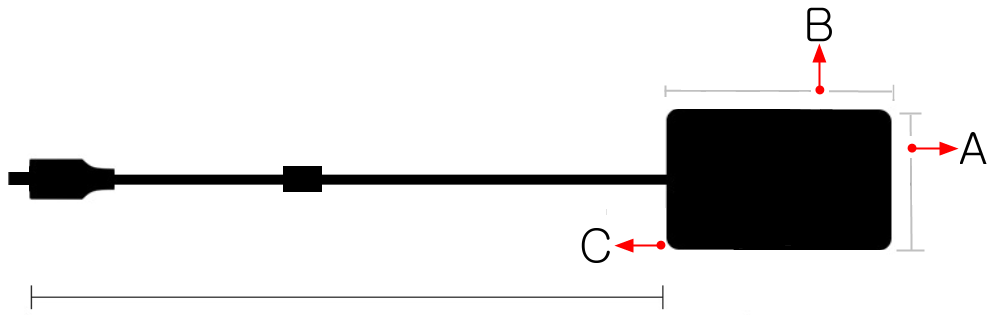

· PLASTIC ENCLOSURE(CASE): V-1, 120℃, UL · AC INLET: C14, · DC PLUG: OPTIONAL / DC WIRE: 2464, 300V 14AWG, UL / DC WIRE LENGTH(STANDARD): 1.5M · NOISE FILTER(CORE): RH5.5X12X20 · SIZE: A(L)=246 MM, B(W)=135 MM, C(H)=70 MM

CASE（盒） - 耐火等级、耐热性、防止坠落、纯PC材料/TRANSFORMER（变压器） - 高品质纯铜、漆包覆钢丝、双层绝缘钢丝 / AC INLET: C14 / DC CABLE & PLUG - 高品质纯铜，可指定用户，可测试10,000个以上的插头播放器

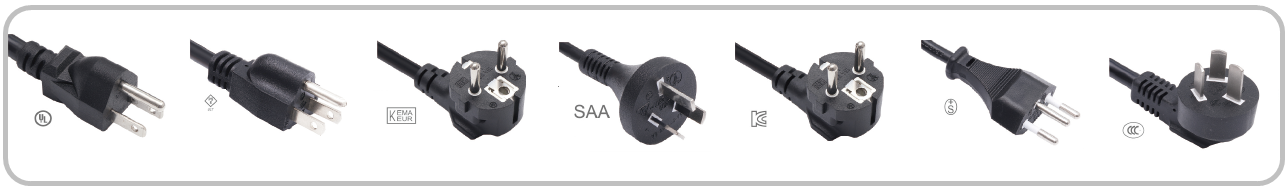

美国、日本、欧洲、澳大利亚、韩国、英国、中国

SPECIFICATION

Rated Input Voltage	100-240V, input voltage range: 90-264 Vac
Rated Frequency	50/60Hz, frequency range: 47-63 Hz
Current	5A Max.
Peak Inrush Current	≤65A＠240Vac
Output Voltage range	12V-56V
Output Power Max.	1,000W
Output Characteristics	High precision, low noise
Output Load Regulation	±5% ( Typical )
Output Hold-up time	60mS＠Full Load
Working Mode	Constant Voltage/Constant Current
Environmental Protection	Complies with ROHS, REACH
Mechanical Test	Pass Vibration, Bending, Tensile strength, Plug in and out
Safety Standards	IEC/EN62368-1
Operating Temperature	-30°C~60°C
Storage Temperature	-40°C~80°C
Relative Humidity	Operating: 20~95% RH, Storage: 10~95% RH
Cooling Method	Natural Convection Cooling
Leakage Current	Max.0.75mA
Efficiency	Level V
EMC Standards	EN 55032, EN 55035, EN IEC 61003-3-2, EN 61000-3-3
Certification	Global
