PRODUCT / LED CONVERTER

Ultra-small 100W 37MM (width) x 23MM (thickness), excellent price competitiveness, ultra-thin 300W/400W/500W 67MM (thickness), compact design to provide stable voltage, even brightness of LEDs, low electricity consumption and long life, original appearance, innovative design, rust-resistant aluminum case, heat dissipation, sound insulation, dust resistance, water resistance.

60W, LED Converter
Output range: 60W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliance.Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc.

60W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V5A

24V2.5A

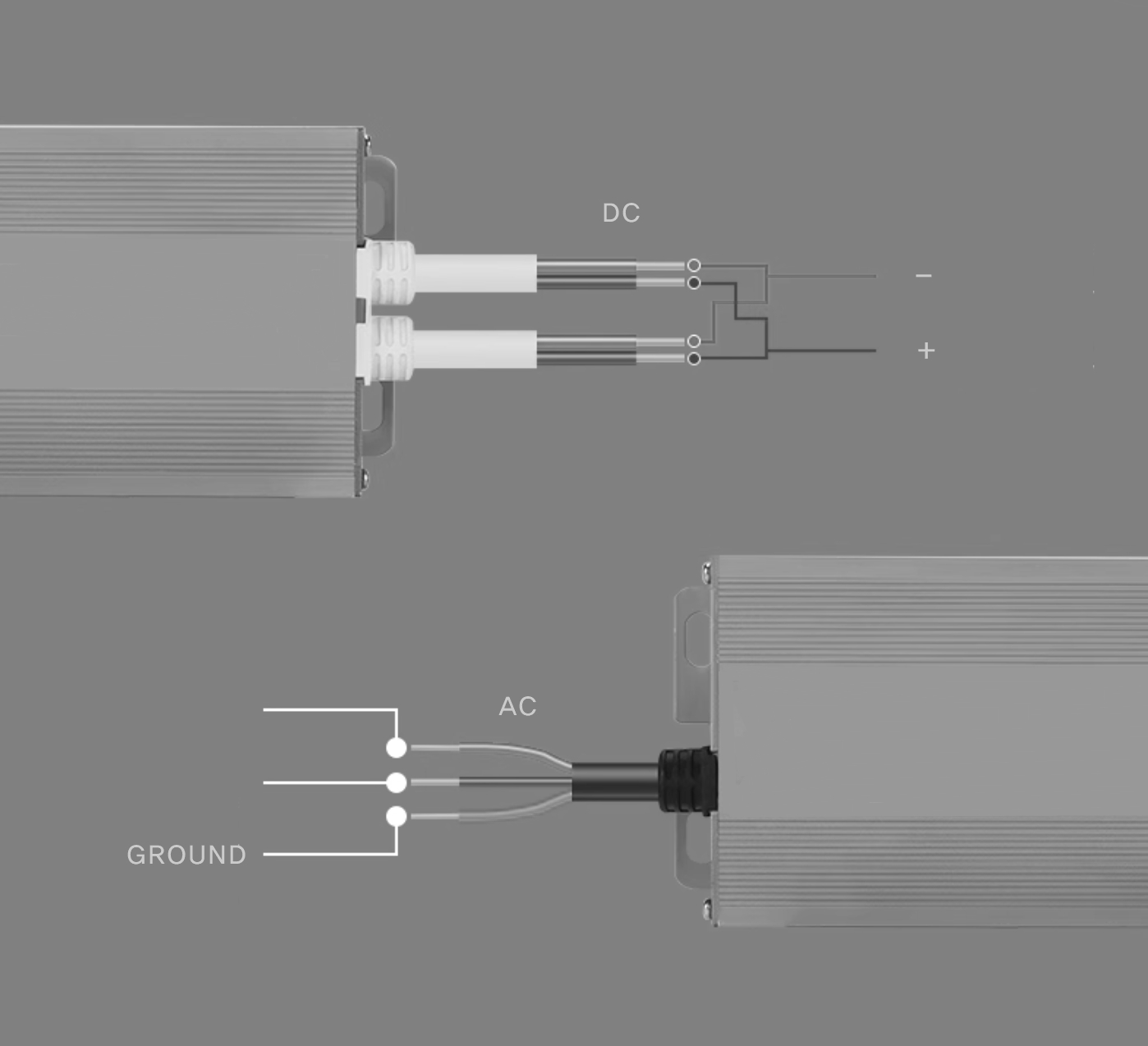

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof grade IP 67, Safety certification: CE etc., OV/OC/SC Triple Protection, SMPS, Aluminum Cover, AC Cable Standard Length: 0.3M, DC Cable Standard Length: 0.3M, Size: 37(W)x23(H)x124(L) MM

TCB-L120060, TCB-L240060

100W, LED Converter
Output range: 100W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliance.Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc. Ultra-small 100W 12V/24V, 37MM (width) x 23MM (thickness), price competitiveness

100W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V8.33A

24V4.16A

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof grade IP 67, Safety certification: CE etc., OV/OC/SC Triple Protection, SMPS, Aluminum Cover, AC Cable Standard Length: 0.3M, DC Cable Standard Length: 0.3M, Size: 37(W)x23(H)x161(L) MM

TCB-L120100, TCB-L240100

150W, LED Converter
Output range: 150W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliant. Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc.

150W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V12.5A 12V16.66A

24V6.25A 24V8.33A

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof grade IP 67, Safety certification: CE etc., OV/OC/SC Triple Protection, SMPS, Aluminum Cover, AC Cable Standard Length: 0.3M, DC Cable Standard Length: 0.3M, Size: 54(W)x31(H)x192(L) MM

TCB-L120150, TCB-L240150

200W, LED Converter
Output range: 200W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliant. Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc. Ultra-thin 200W 12V/24V, 54MM (width) x 31MM (thickness), Excellent cost performance

200W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V16.66A

24V8.33A

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof grade IP 67, Safety certification: CE etc., OV/OC/SC Triple Protection, SMPS, Aluminum Cover, AC Cable Standard Length: 0.3M, DC Cable Standard Length: 0.3M, Size: 150W 54(W)x31(H)x192(L) MM, 200W 53(W)x31(H)x220(L) MM

TCB-L120200, TCB-L240200

300W, LED Converter
Output range: 300W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliant. Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc. Ultra-thin 67MM (width) x 31MM (thickness), compact design outside the conventional rugged size

300W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V25A

24V12.5A

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof rating IP 67, safety certification: CE etc., SMPS, aluminum cover, SMPS, AC cable standard length:03.M, AC cable standard length:03.M, Size: 67(W)x31(H)x223(L) MM

TCB-L120300, TCB-L240300

400W, LED Converter
Output range: 400W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliant. Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc. Ultra-thin 67MM (width) x 31MM (thickness), compact design outside the conventional rugged size

400W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V33.33A

24V16.66A

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof rating IP 67, safety certification: CE etc., SMPS, aluminum cover, SMPS, AC cable standard length:03.M, AC cable standard length:03.M, Size: 67(W)x31(H)x243(L) MM

TCB-L120400, TCB-L240400

500W, LED Converter
Output range: 500W (12V/24V). Input voltage: AC 240V, Waterproof IP67, energy efficiency: 85%.OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety certification: KC, etc.REACH, ROHS Compliant. Electromagnetic wave test passed (harmful electromagnetic wave block off), applied products: outdoor LEDs, LED CCTVs, LED billboards, etc. Ultra-thin 67MM (width) x 31MM (thickness), compact design outside the conventional rugged size

500W OUTPUT LIST 12V-24V

  • 12V
  • 24V

12V41.66A

24V20.83A

AC input, DC output (connection on LED product), 100W or less: output wires +/- one line each, 150W or more: output wires +/- two lines each

The protection of overcurrent, overvoltage, overheating and short-circuit current

  • SPECIFICATION
  • CODE

Waterproof rating IP 67, safety certification: CE etc., SMPS, aluminum cover, SMPS, AC cable standard length:03.M, AC cable standard length:03.M, Size: 67(W)x31(H)x263(L) MM

TCB-L120500, TCB-L240500
