中文PRODUCT / DESKTOP ADAPTER DL
-
DL
Output range: 72W to 120W (12V to 56V). Input voltage: AC 100V to 240V.AC INLET: C6 (ground CLASS I): Energy efficiency: VI(6) .OV (overvoltage)/OC (short-circuit)/SC (short-circuit) triple protection. Safety specifications: IEC62368-1 etc. Certification: GLOBAL. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), Applicable products: ITE (information and communication), A/V (audio/video), etc

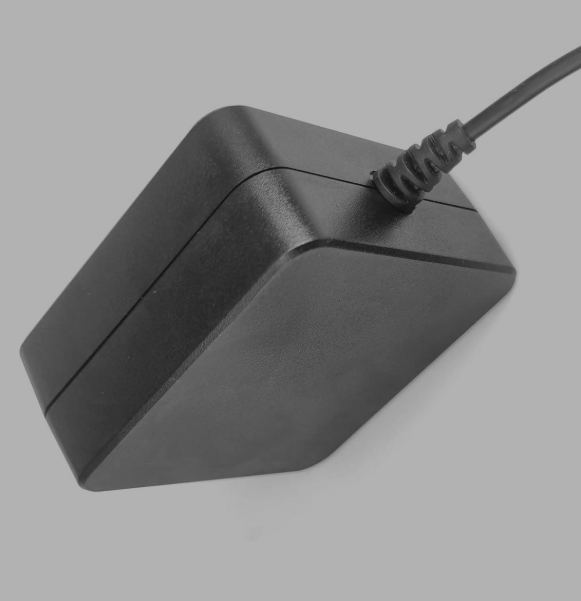

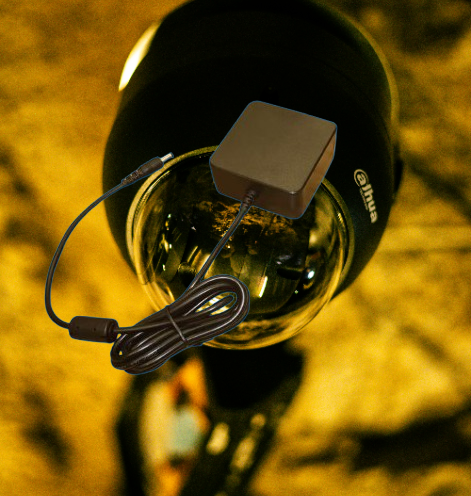

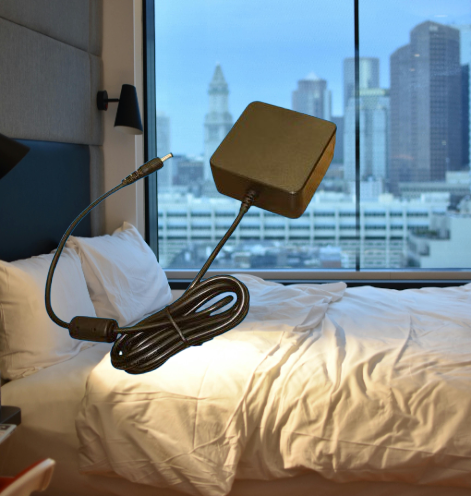

Global Labeling, High Capacity Ultra-Small 120W Adapter
73.5 (length) × 73.5 (width) × 32 (thickness) MM -
DL
Output range: 72W to 120W (12V to 56V). Input voltage: AC 100V to 240V.AC INLET: C6 (ground CLASS I): Energy efficiency: VI(6) .OV (overvoltage)/OC (short-circuit)/SC (short-circuit) triple protection. Safety specifications: IEC62368-1 etc. Certification: GLOBAL. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), Applicable products: ITE (information and communication), A/V (audio/video), etc
Global Labeling, High Capacity Ultra-Small 120W Adapter
73.5 (length) × 73.5 (width) × 32 (thickness) MM
-
120W
Desktop
120W
24V30V48V54V56V
CLASS Ⅰ C6
Compact design
-
100W
Desktop
100W
12V15V18V19V20V
24V30V48V54V56V
CLASS Ⅰ C6
Compact design
-
90W
Desktop
90W
12V15V18V19V20V
24V30V48V54V56V
CLASS Ⅰ C6
Compact design
-
84W
Desktop
84W
12V15V18V19V20V
24V30V48V54V56V
CLASS Ⅰ C6
Compact design
· Flexibility in Device Placement: Keep the adapter body away from the outlet, and use the connection cord to place the device anywhere you want. It is especially convenient when the outlet is far away or multiple devices need to be connected.
· Reduce outlet burden: Reduce the risk of damage to the outlet because the weight of the adapter body is not applied directly to the wall outlet.
· Easy port access: easy access to power ports or connecting ports by placing the adapter body on your desk for easy cable connection and management.
· High power availability: Desktop adapters are often designed to deliver higher power than wall-mounted adapters. Therefore, it is advantageous when you need to connect high-performance laptops or multiple peripherals at the same time.
· Ease of cord replacement: If a power cord or instrument connection cord is damaged, only that cord can be replaced and used, which is economical.
· Stable mounting: The adapter body rests stably on the floor or on the desk, so there is less risk of dropping or hitting.

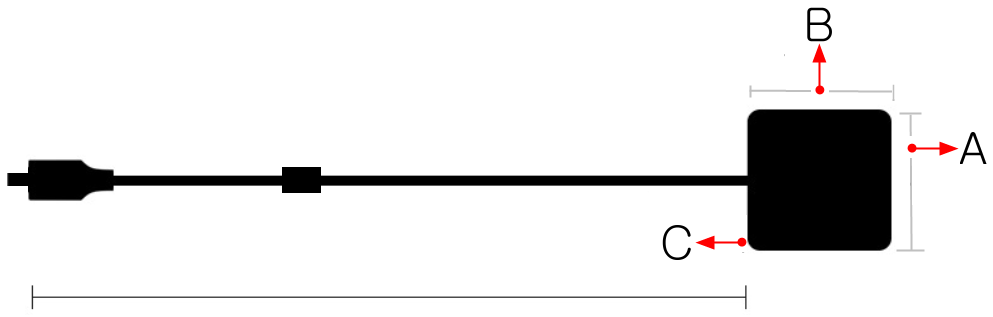

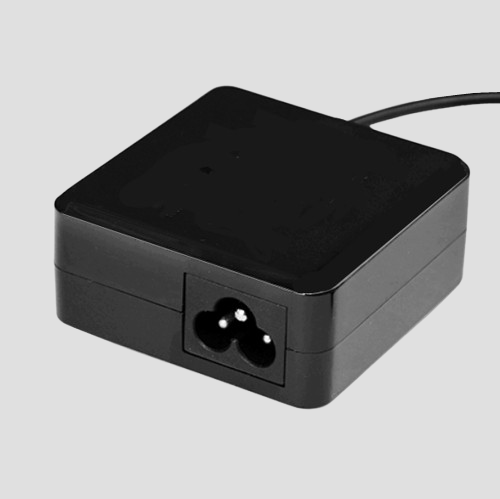

DC WIRE STANDARD: 1.5 M · PLASTIC ENCLOSURE: V-1, 120℃, UL · AC INLET: C6 · AC PLUG & AC POWER CORD: OPTIONAL / AC POWER CORD LENGTH(STANDARD): 1M · DC PLUG: OPTIONAL / DC WIRE: 2464, 300V 18AWG, UL / DC WIRE LENGTH(STANDARD): 1.5M · NOISE FILTER: RH5.5X12X20 · SIZE: A(L)=73.5 MM, B(W)=73.5 MM, C(H)=32 MM

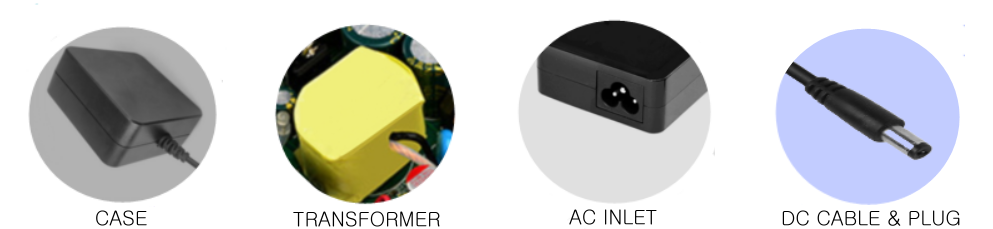

CASE (case) - Fire resistance, heat resistance, fall protection, pure PC materials / TRANSFORMER - High quality pure copper, enamel coated wire, double insulated wire / AC inlet: C6 / DC CABLE & PLUG - High quality pure copper, customizable, more than 10,000 plug play tests
USA, Japan, Europe, Australia, Korea, UK, China |
Protection: Overcurrent, overvoltage, overheat, short circuit |
Applies to information, communications, audio, video devices, DC heating mats, home appliances, etc.,.
|
