中文PRODUCT / WALL-MOUNTED ADAPTER WG
-

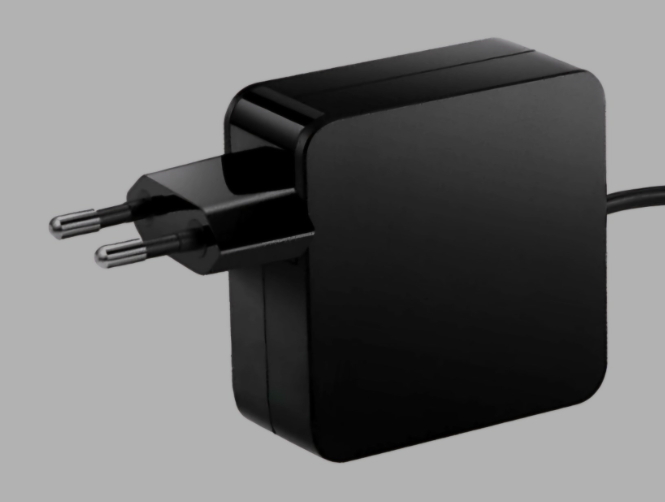

WG

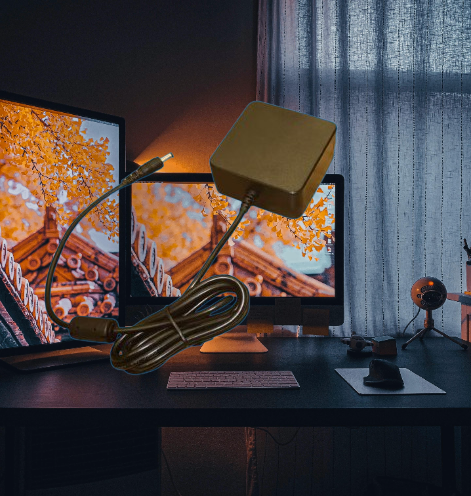

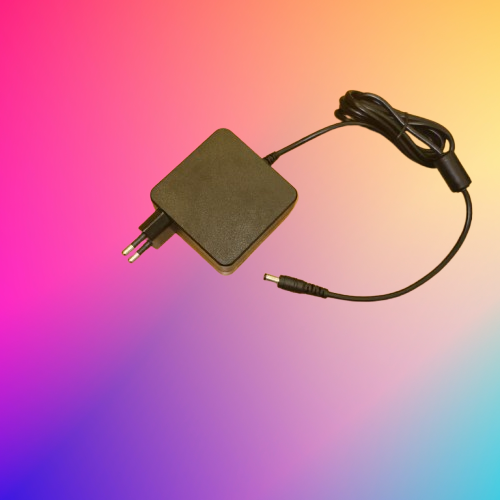

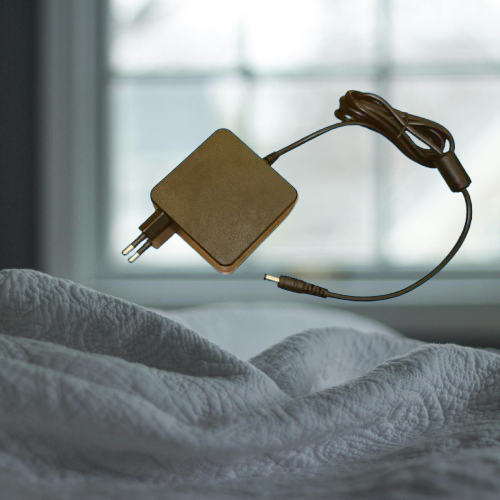

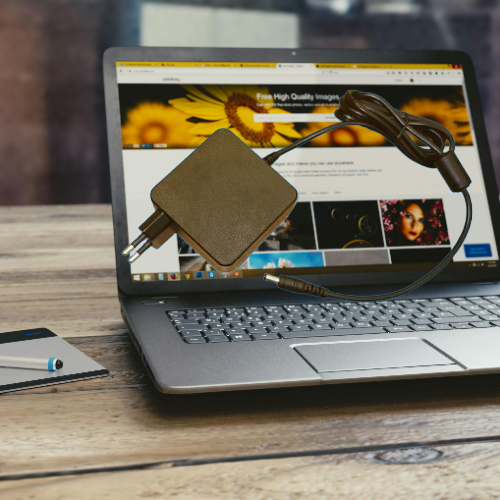

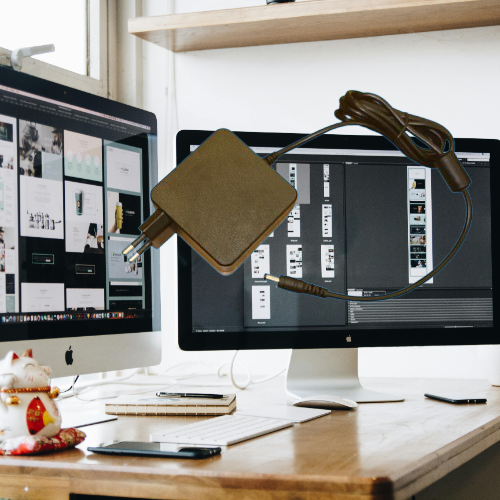

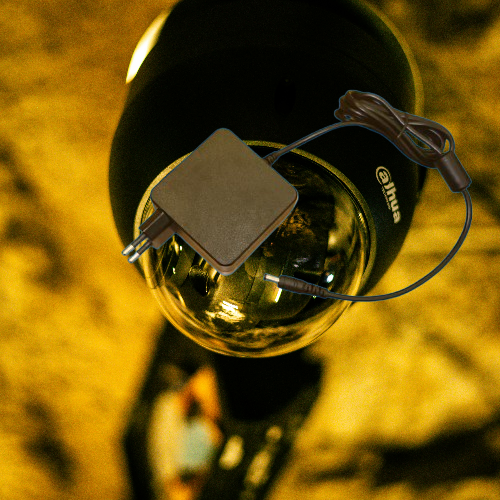

Output range: MAX. 65W (13V/ 14V/ 15V/ 16V/ 17V/ 18V/ 19V/ 20V/ 21V/ 23V/ 24V/ 26V/ 28V/ 30V/ 36V/ 48V/ 54V/ 56V), input voltage: AC 100V to 240V.ground, size: 73.5 (length)*73.5 (width)*32 (thickness) MM, compact design, AC plugs: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. REACH, ROHS-compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, conforming to energy efficiency standards. Applied products: Thermal mat, ITE (information and communication), A/V (audio/video), etc.
Wallmount 65W (13V/14V/15V/16V/17V/18V/19V/20V/24V/30V/36V/48V/54V/56V) - 73.5(L)*73.5(W)*32(H)MM, electromagnetic field test for DC thermal mats, industrial use. Optimized for home monitors, etc. -
WG
Output range: MAX. 65W (13V/ 14V/ 15V/ 16V/ 17V/ 18V/ 19V/ 20V/ 21V/ 23V/ 24V/ 26V/ 28V/ 30V/ 36V/ 48V/ 54V/ 56V), input voltage: AC 100V to 240V.ground, size: 73.5 (length)*73.5 (width)*32 (thickness) MM, compact design, AC plugs: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. REACH, ROHS-compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, conforming to energy efficiency standards. Applied products: Thermal mat, ITE (information and communication), A/V (audio/video), etc.
Wallmount 65W (13V/14V/15V/16V/17V/18V/19V/20V/24V/30V/36V/48V/54V/56V) - 73.5(L)*73.5(W)*32(H)MM, electromagnetic field test for DC thermal mats, industrial use. Optimized for home monitors, etc.
-
65W
Wall-mounted
65W
13V14V15V16V17V
18V19V20V21V23V
24V25V26V28V30V
36V48V54V56V
CLASS Ⅱ
Compact design
-
60W
Wall-mounted
60W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V48V54V
56V
CLASS Ⅱ
Compact design
-
50W
Wall-mounted
50W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V48V
CLASS Ⅱ
Compact design
-
40W
Wall-mounted
40W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V
CLASS Ⅱ
Compact design
· Save space: You can use it efficiently in a small space because you don't need space for a separate power cord or adapter body. It prevents complications, especially around outlets.
· Cleanup: The power cord doesn't hang on the floor or desk, so you can tidy up your surroundings.
· Intuitive use: It's very easy to use as you just plug it directly into a wall outlet.
· Portability (specific situation): Some wall-mounted adapters are compact and lightweight, making them convenient to carry around when traveling. They are especially useful when you need to charge multiple devices.
· No risk of losing your code: There is no separate code, so you don't have to worry about losing your code.

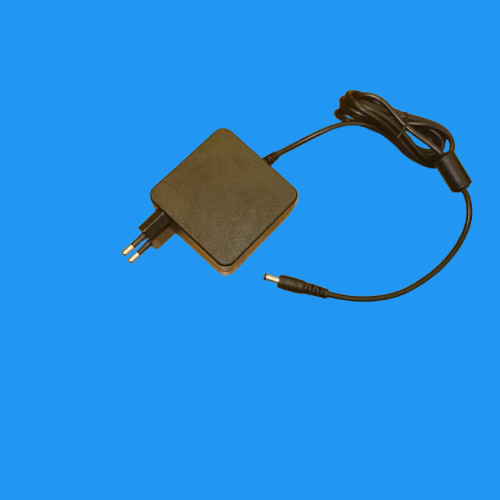

DC WIRE STANDARD: 1.5 M · PLASTIC ENCLOSURE: V-1, 120℃, UL · AC PLUG: KC,VDE · DC PLUG: OPTIONAL / DC WIRE: 2464, 300V 18AWG, UL / DC WIRE LENGTH(STANDARD): 1.5M · NOISE FILTER(코어): RH5.5X12X20 · SIZE: A(L)=73.5 MM, B(W)=73.5 MM, C(H)=32 MM

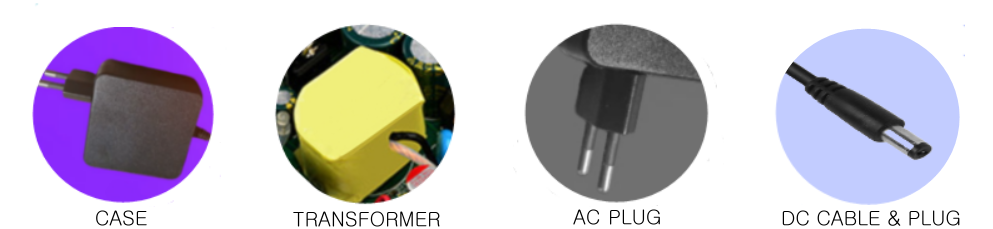

CASE (case) - Fire resistance, heat resistance, fall protection, pure PC materials / TRANSFORMER - High quality pure copper, enamel coated wire, double insulated wire / AC PLUG - Compliance with plug standards in Europe, the United States, South Korea, the United Kingdom, Japan, China, etc. / DC CABLE & PLUG - High quality pure copper, customizable, more than 10,000 plug play tests
USA, Australia, UK, EU, etc.,. |
Protection: Overcurrent, overvoltage, overheat, short circuit |
Applies to information, communications, audio, video devices, home appliances, etc.,.
|
