PRODUCT / HIGH CAPACITY ADAPTER HC

  • HC
    Output range: 500W to 1,000    W (9V to 56V). Input voltage: AC 100V to 240V.AC INLET: C14 (ground CLASSI): Energy efficiency: V(5). OV (overvoltage)/OC (short-circuit)/SC (short-circuit) triple protection. Safety certification: CE, etc. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), Applied product: Industrial equipment, etc.,.
    Max.1,000 W High Capacity Simple Design Adapter, Size: 246 (length) x 135 (width) x 70 (thickness)

  • 1,000W

    High capacity

    1,000W

    12V15V16V18V19V

    20V24V30V48V54V

    56V

    CLASS Ⅰ C14



  • 900W

    High capacity

    900W

    12V15V16V18V19V

    20V24V30V48V54V

    56V

    CLASS Ⅰ C14

  • 800W

    High capacity

    800W

    12V15V16V18V19V

    20V24V30V48V54V

    56V

    CLASS Ⅰ C14


  • 700W

    High capacity

    700W

    12V15V16V18V19V

    20V24V30V48V54V

    56V

    CLASS Ⅰ C14


  • 600W

    High capacity

    600W

    12V15V16V18V19V

    20V24V30V48V54V

    56V

    CLASS Ⅰ C14


  • 500W

    High capacity

    500W

    12V15V16V18V19V

    20V24V30V48V54V

    56V

    CLASS Ⅰ C14


DC WIRE STANDARD: 1.5 M

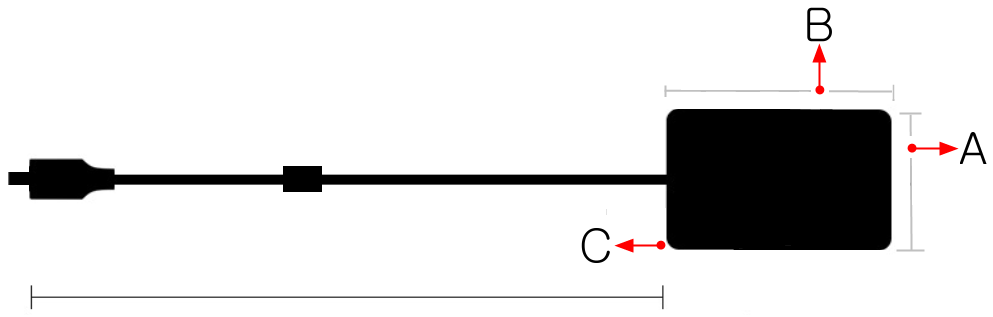

· PLASTIC ENCLOSURE(CASE): V-1, 120℃, UL  · AC INLT: C14  · DC PLUG: OPTIONAL / DC WIRE: 2464, 14AWG, UL / DC WIRE LENGTH(STANDARD): 1.5M  · SIZE: A(L)=246 MM, B(W)=135 MM, C(H)=70 MM

CASE - Fire resistance, heat resistance, fall protection, pure PC materials & aliminum / TRANSFORMER - High quality pure copper, enamel coated wire, double insulated wire / AC inlet: C14 / DC CABLE & PLUG - High quality pure copper, customizable, more than 10,000 plug play tests

USA, Japan, Europe, Australia, Korea, UK, China

SPECIFICATION
Rated Input Voltage100-240V, input voltage range: 90-264 Vac
Rated Frequency50/60Hz, frequency range: 47-63 Hz
Current 5A Max.
Peak Inrush Current≤65A＠240Vac
Output Voltage range12V-56V
Output Power Max.1,000W
Output Characteristics

High precision, low noise

Output Load Regulation±5% ( Typical )
Output Hold-up time60mS＠Full Load
Working ModeConstant Voltage/Constant Current
Environmental Protection

Complies with ROHS, REACH

Mechanical TestPass Vibration, Bending, Tensile strength, Plug in and out
Safety StandardsIEC/EN62368-1
Operating Temperature

-30°C~60°C

Storage Temperature-40°C~80°C
Relative HumidityOperating: 20~95% RH, Storage: 10~95% RH
Cooling MethodNatural Convection Cooling
Leakage CurrentMax.0.75mA
Efficiency Level V
EMC StandardsEN 55032, EN 55035, EN IEC 61003-3-2, EN 61000-3-3
CertificationGlobal

Protection: Overcurrent, overvoltage, overheat, short circuit

OUTPUT
