中文PRODUCT / DESKTOP DG
-
DG

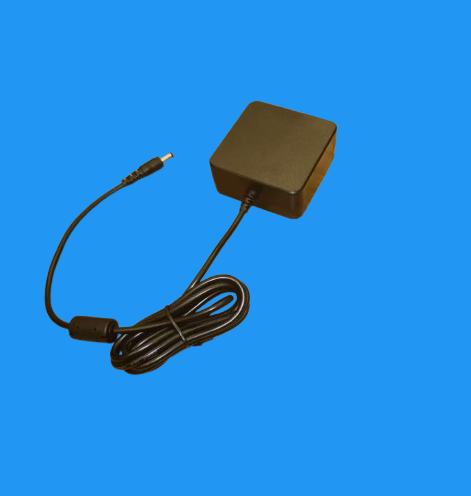

Output range: 36W to 65W (9V to 56V). Input voltage: AC 100V to 240V.AC INLET: C6 (ground CLASS I): Energy efficiency: VI(6) .OV (overvoltage)/OC (short-circuit)/SC (short-circuit) triple protection. Safety specifications: IEC62368-1 etc. Certification: GLOBAL. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), Applicable products: ITE (information and communication), A/V (audio/video), etc
Global label applied, 73.5 (length) × 73.5 (width) × 32 (thickness) MM -
DG
Output range: 36W to 65W (9V to 56V). Input voltage: AC 100V to 240V.AC INLET: C6 (ground CLASS I): Energy efficiency: VI(6) .OV (overvoltage)/OC (short-circuit)/SC (short-circuit) triple protection. Safety specifications: IEC62368-1 etc. Certification: GLOBAL. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), Applicable products: ITE (information and communication), A/V (audio/video), etc
Global label applied, 73.5 (length) × 73.5 (width) × 32 (thickness) MM
-
65W
Desktop
65W
13V14V15V16V17V
18V19V20V21V23V
24V25V26V28V30V
36V48V54V56V
CLASS Ⅰ C6
Compact design
-
60W
Desktop
60W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V48V54V
56V
CLASS Ⅰ C6
Compact design
-
50W
Desktop
50W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V48V
CLASS Ⅰ C6
Compact design
-
40W
Desktop
40W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V
CLASS Ⅰ C6
Compact design
· Flexibility in Device Placement: Keep the adapter body away from the outlet, and use the connection cord to place the device anywhere you want. It is especially convenient when the outlet is far away or multiple devices need to be connected.
· Reduce outlet burden: Reduce the risk of damage to the outlet because the weight of the adapter body is not applied directly to the wall outlet.
· Easy port access: easy access to power ports or connecting ports by placing the adapter body on your desk for easy cable connection and management.
· High power availability: Desktop adapters are often designed to deliver higher power than wall-mounted adapters. Therefore, it is advantageous when you need to connect high-performance laptops or multiple peripherals at the same time.
· Ease of cord replacement: If a power cord or instrument connection cord is damaged, only that cord can be replaced and used, which is economical.
· Stable mounting: The adapter body rests stably on the floor or on the desk, so there is less risk of dropping or hitting.
DC WIRE STANDARD: 1.5 M · PLASTIC ENCLOSURE: V-1, 120℃, UL · AC INLET: C6 · AC PLUG & AC POWER CORD: OPTIONAL / AC POWER CORD LENGTH(STANDARD): 1M · DC PLUG: OPTIONAL / DC WIRE: 2464, 300V 20AWG, UL / DC WIRE LENGTH(STANDARD): 1.5M · NOISE FILTER: RH5.5X12X20 · SIZE: A(L)=73.5 MM, B(W)=73.5 MM, C(H)=32 MM
CASE (case) - Fire resistance, heat resistance, fall protection, pure PC materials / TRANSFORMER - High quality pure copper, enamel coated wire, double insulated wire / AC inlet: C6 / DC CABLE & PLUG - High quality pure copper, customizable, more than 10,000 plug play tests
USA, Japan, Europe, Australia, Korea, UK, China |
Protection: Overcurrent, overvoltage, overheat, short circuit |
Applies to information, communications, audio, video devices, home appliances, etc.,.
|
