中文PRODUCT / CORD INTEGRAL ADAPTER CG
-
CG
Ground type, passing an electromagnetic field test dedicated to DC thermal mats, blocking harmfulness from electromagnetic waves.
Output range: 36W to 65W, Input voltage: AC 100V to 240V, Ground, Size: 73.5 (length)*73.5 (width)*32 (thickness) MM, Compact design, AC plugs: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
AC power cord: KC, VDE, etc. certification 16A 250V~
Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. REACH, ROHS-compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, conforming to energy efficiency standards. Applicable products: DC thermal mat, ITE (information and communication), A/V (audio/video), etc.
-
65W
Cord integral
65W
13V14V15V16V17V
18V19V20V21V23V
24V25V26V28V30V
36V48V54V56V
CLASS Ⅰ
Compact design
-
60W
Cord integral
60W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V48V54V
56V
CLASS Ⅰ
Compact design
-
50W
Cord integral
50W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V48V
CLASS Ⅰ
Compact design
-
40W
Cord integral
40W
9V12V13V14V15V
16V17V18V19V20V
21V23V24V25V26V
28V30V36V
CLASS Ⅰ
Compact design
· Safe from harmful electromagnetic waves: Ground type cord integral adapter, safe from harmful electromagnetic waves and magnetic fields.
· Ease of portability and storage: The adapter body and cord are connected in one, so you don't have to pack a separate cord or lose it. It's neat and easy to carry when you put it in your bag or on the move.
· Ease of use: It is convenient because you don't need to connect the cord separately. You can save time by reducing the level of connection, especially when using multiple devices frequently.
· Reduce risk of loss: The adapter and cord are not separated, so you can avoid losing only the cord separately.
· CONNECTION STABILITY (POTENTIAL): In the case of a disconnected cord, the connection may become loose or contact failure may occur, but the integral is relatively less likely.
· Clean Appearance: The cord is secured to the adapter for overall clean appearance.
DC WIRE STANDARD: 1.5 M AC CABLE STANDARD: 1 M · PLASTIC ENCLOSURE: V-1, 120℃, UL · AC PLUG & AC POWER CORD: KC,VDE, 16A 250Vac, H05V-F/60227 IEC 53 3X0.75 ㎟ (16A 250V is capable of withstanding high power. It is used in high-power electronics, servers, industrial equipment, electric heaters, etc. due to low resistance, low heat generation and stable. ) / AC POWER CORD LENGTH: 1M · DC PLUG: OPTIONAL / DC WIRE: 2464, 300V 18AWG, UL / DC WIRE LENGTH: 1.5M · NOISE FILTER: RH5.5X12X20 · SIZE: A (length) = 73.5 MM, B (width) = 73.5 MM, C (thickness) = 32 MM

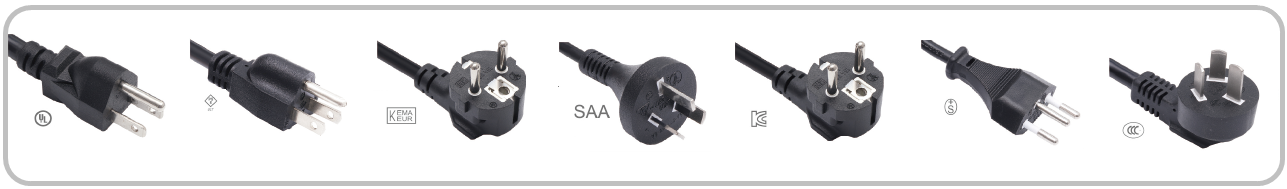

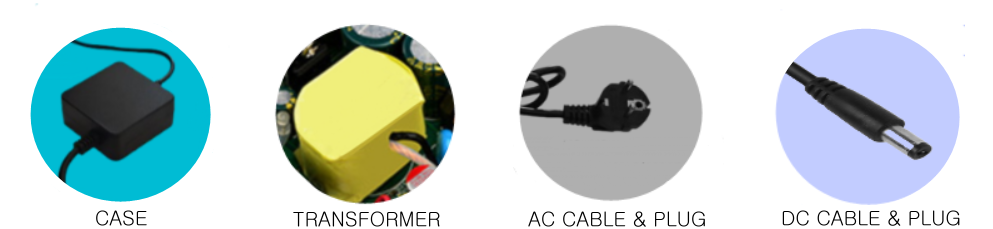

CASE (case) - Fire resistance, heat resistance, fall protection, pure PC materials / TRANSFORMER - High quality pure copper, enamel coated wire, double insulated wire / AC CABLE & PLUG - Compliance with plug standards in Europe, the United States, South Korea, the United Kingdom, Japan, China, etc. / DC CABLE & PLUG - High quality pure copper, customizable, more than 10,000 plug play tests
USA, Japan, Europe, Australia, Korea, UK, China |
Protection: Overcurrent, overvoltage, overheat, short circuit |
Applies to information, communications, audio, video devices, DC heating mats, home appliances, etc.,.
|
