中文PRODUCT / WALL-MOUNTED ADAPTER WL
-
WL

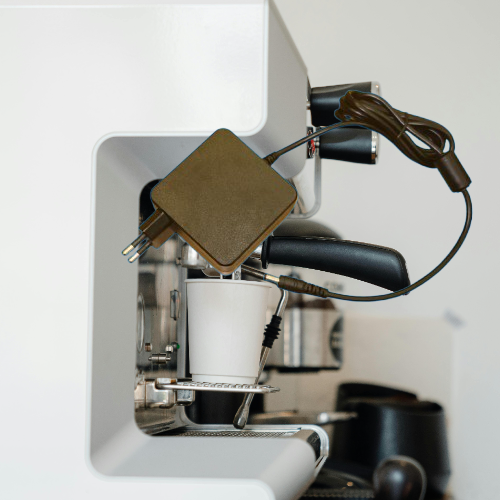

Industry's first 120W (24V/30V/48V/54V/56V) wall mount - Ultra-small 73.5(L)*73.5(W)*32(H)MM (approximately two-fifths the size of a typical 120W adapter), optimized for electromagnetic field testing for DC thermal mats, monitors, coffee machines, etc.
Output range: MAX. 120W (24V/30V/48V/54V/56V), 100W (12V/15V/18V/19V/20V), Input voltage: AC 200V to 240V. Ground, Size: 73.5 (length)*73.5 (width)*32 (thickness) MM, Compact Design, AC Plug: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. REACH, ROHS-compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, and conformity with energy efficiency standards. Applicable products: Thermal mat, ITE (information and communication), A/V (audio/video), etc. -
WL
Industry's first 120W (24V/30V/48V/54V/56V) wall mount - Ultra-small 73.5(L)*73.5(W)*32(H)MM (approximately two-fifths the size of a typical 120W adapter), optimized for electromagnetic field testing for DC thermal mats, monitors, coffee machines, etc.
Output range: MAX. 120W (24V/30V/48V/54V/56V), 100W (12V/15V/18V/19V/20V), Input voltage: AC 200V to 240V. Ground, Size: 73.5 (length)*73.5 (width)*32 (thickness) MM, Compact Design, AC Plug: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. REACH, ROHS-compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, and conformity with energy efficiency standards. Applicable products: Thermal mat, ITE (information and communication), A/V (audio/video), etc.
-
120W
Wall-mounted
120W
24V30V48V54V56V
CLASS Ⅱ
Compact design
-
100W
Wall-mounted
100W
12V15V18V19V20V
24V30V48V54V56V
CLASS Ⅱ
Compact design
-
90W
Wall-mounted
90W
12V15V18V19V20V
24V30V48V54V56V
CLASS Ⅱ
Compact design
-
84W
Wall-mounted
84W
12V15V18V19V20V
24V30V48V54V56V
CLASS Ⅱ
Compact design
· Save space: You can use it efficiently in a small space because you don't need space for a separate power cord or adapter body. It prevents complications, especially around outlets.
· Cleanup: The power cord doesn't hang on the floor or desk, so you can tidy up your surroundings.
· Intuitive use: It's very easy to use as you just plug it directly into a wall outlet.
· Portability (specific situation): Some wall-mounted adapters are compact and lightweight, making them convenient to carry around when traveling. They are especially useful when you need to charge multiple devices.
· No risk of losing your code: There is no separate code, so you don't have to worry about losing your code.
DC WIRE STANDARD: 1.5 M · PLASTIC ENCLOSURE: V-1, 120℃, UL · AC PLUG: KC,VDE · DC PLUG: OPTIONAL / DC WIRE: 2464, 300V 18AWG, UL / DC WIRE LENGTH(STANDARD): 1.5M · NOISE FILTER: RH5.5X12X20 · SIZE: A(L)=73.5 MM, B(W)=73.5 MM, C(H)=32 MM
CASE (case) - Fire resistance, heat resistance, fall protection, pure PC materials / TRANSFORMER - High quality pure copper, enamel coated wire, double insulated wire / AC PLUG - Compliance with plug standards in Europe, the United States, South Korea, the United Kingdom, Japan, China, etc. / DC CABLE & PLUG - High quality pure copper, customizable, more than 10,000 plug play tests
USA, Australia, UK, EU, etc.,. |
Protection: Overcurrent, overvoltage, overheat, short circuit |
Applies to information, communications, audio, video devices, DC heating mats, home appliances, etc.,.
|
