Product information / Wall-mounted adapter

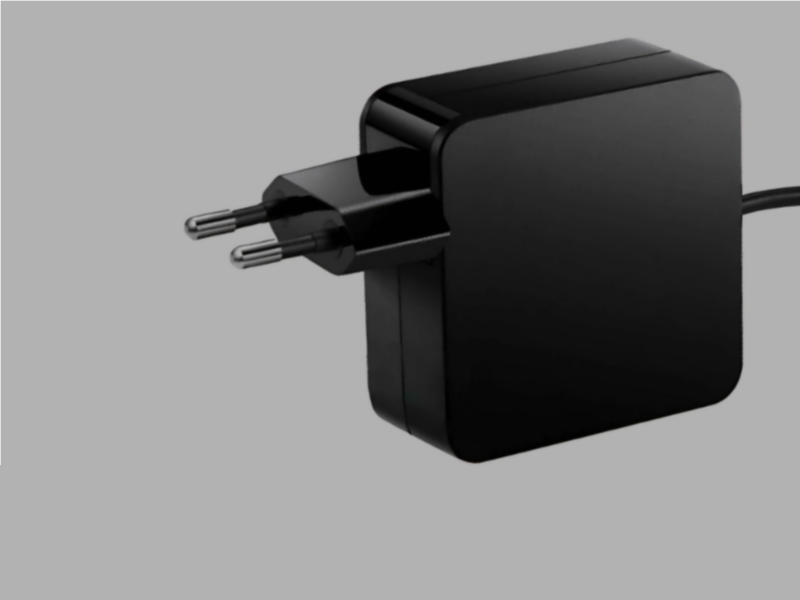

  • Wall-Mounted Adapter TCB-WL (D120)

    Output range: MAX. 120W(24V/ 30V/ 48V/ 54V/ 56V), 100W(12V/ 15V/ 18V/ 19V/ 20V), Input voltage: AC 200V to 240V. Ground, Size: 73.5 (length)*73.5 (width)*32 (thickness) MM, Compact Design, AC Plug: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
    Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. Safety certification: KC et al. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, and conformity with energy efficiency standards. Applied products: Thermal mat, ITE (information and communication), A/V (audio/video), etc.
    GLOBAL certification
    Industry's first ground type cord integrated 120W (24V/30V/48V/54V/56V) - Ultra-small 73.5(L)*73.5(W)*32(H)MM (approximately two-fifths the size of a regular 120W adapter), passed electromagnetic field tests, optimized for DC thermal mats, coffee machines, etc.

  • Wall-mounted Adapter TCB-WG (D65)

    Output range: MAX. 65W(13V/ 14V/ 15V/ 16V/ 17V/ 18V/ 19V/ 20V/ 21V/ 23V/ 24V/ 25V/ 26V/ 28V/ 30V/ 36V/ 48V/ 54V/ 56V), 60W(9V/ 12V), Input voltage: AC 100V to 240V. Ground, Size: 73.5 (L)*73.5 (W)*32 (H) MM, Compact Design, AC Plug: USA, UK, EU, KOREA, CHINA, JAPAN, etc.
    Energy efficiency: VI(6) .OV (overvoltage)/OC (overcurrent)/SC (short-circuit current) triple protection. Safety specification: IEC62368-1 etc. Safety certification: KC et al. REACH, ROHS compliant.EMF electric field test pass (harmful electromagnetic wave cutoff), excellent portability, stable voltage, and conformity with energy efficiency standards. Applied products: Thermal mat, ITE (information and communication), A/V (audio/video), etc.
    GLOBAL certification
    Ground type cord integrated 65W (13V/ 14V/ 15V/ 16V/ 17V/ 18V/ 19V/ 20V/ 24V/ 30V/ 36V/ 48V/ 54V/ 56V) - 73.5(L)*73.5(W)*32(H) MM, passed electromagnetic field test, optimized for DC thermal mats, industrial and home monitors etc.

MTBF: 50,000 HOURS - 80% MAX. LOAD AT 25℃, STANDARD: MIL-HDBK-217F

Overcurrent, overvoltage, overheating, short-circuit current protection

Applied for ITE(information and communication), A/V(audio/video) etc.,.

  • CODE
  • SPECIFICATION

CODE: xxx=00.0V, yyy=0.00A, d=K(Korea), U(america), C(china), E(europe), B(british), J(japan) ex./ TCP-D120-240500K (24V5A/120W)

Non ground, SMPS, Square Type, Color(black&white), AC Plug: Optional, DC Cable Standard Length: 1.5m, Noise Filter, DC Plug: Optional, Safety Certification: UL, CE , KC , CCC , PSE , FCC etc *TCB-A15-xxxyyyd, 52.5(L)x52.5(W)x32(H), Vac 100-240V, 50-60Hz, 0.5A, 0.5-12.5W(5.0-11.9V/0.1-2.5A), 1.2-15.6W(12.0-24.0V/0.1-1.3A), 2.41-15.6W(24.1-56.0V/0.1-0.65A) *TCB-A30-xxxyyyd, 52.5(L)x52.5(W)x32(H), Vac 100-240V, 50-60Hz, 1.0A, 0.5-20.0W(5.0-11.9V/0.1-4.0A). 1.2-30.0W(12.0-24.0A/0.1-2.5A), 2.41-30.0W(24.1-56.0V/0.1-1.25A) *TCB-D65-xxxyyyd, 73.5(L)x73.5(W)x32(H), Vac 100-240, 50-60Hz, 1.5A, 1.2-65W(12.0-23.9V/0.1-5.0A), 2.4-65W(24.0-56.0V0.1A-2.71A) *TCB-D120-xxxyyyd, 72.5(L)x72.5(W)x32(H), Vac 200~240, 50~60Hz, 2.5A, 1.2-120W(12.0-23.9V/0.1-8.33A), 2.4-120W(24.0-56.0V/0.1-5.0A)
